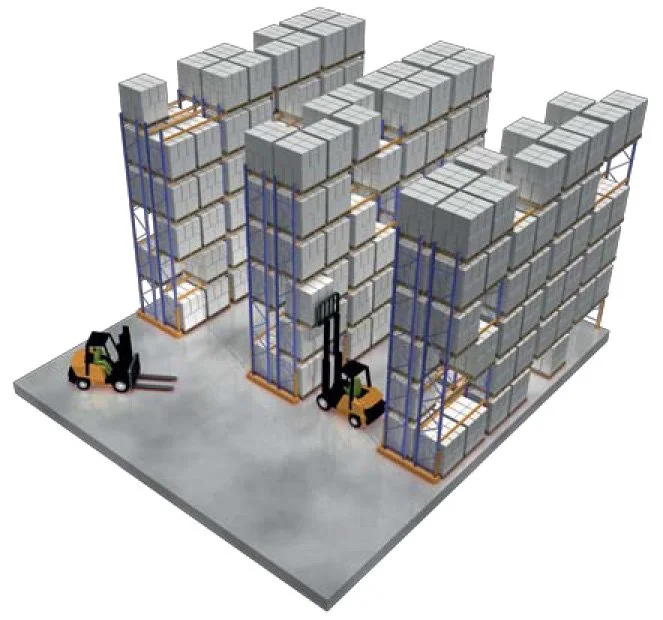

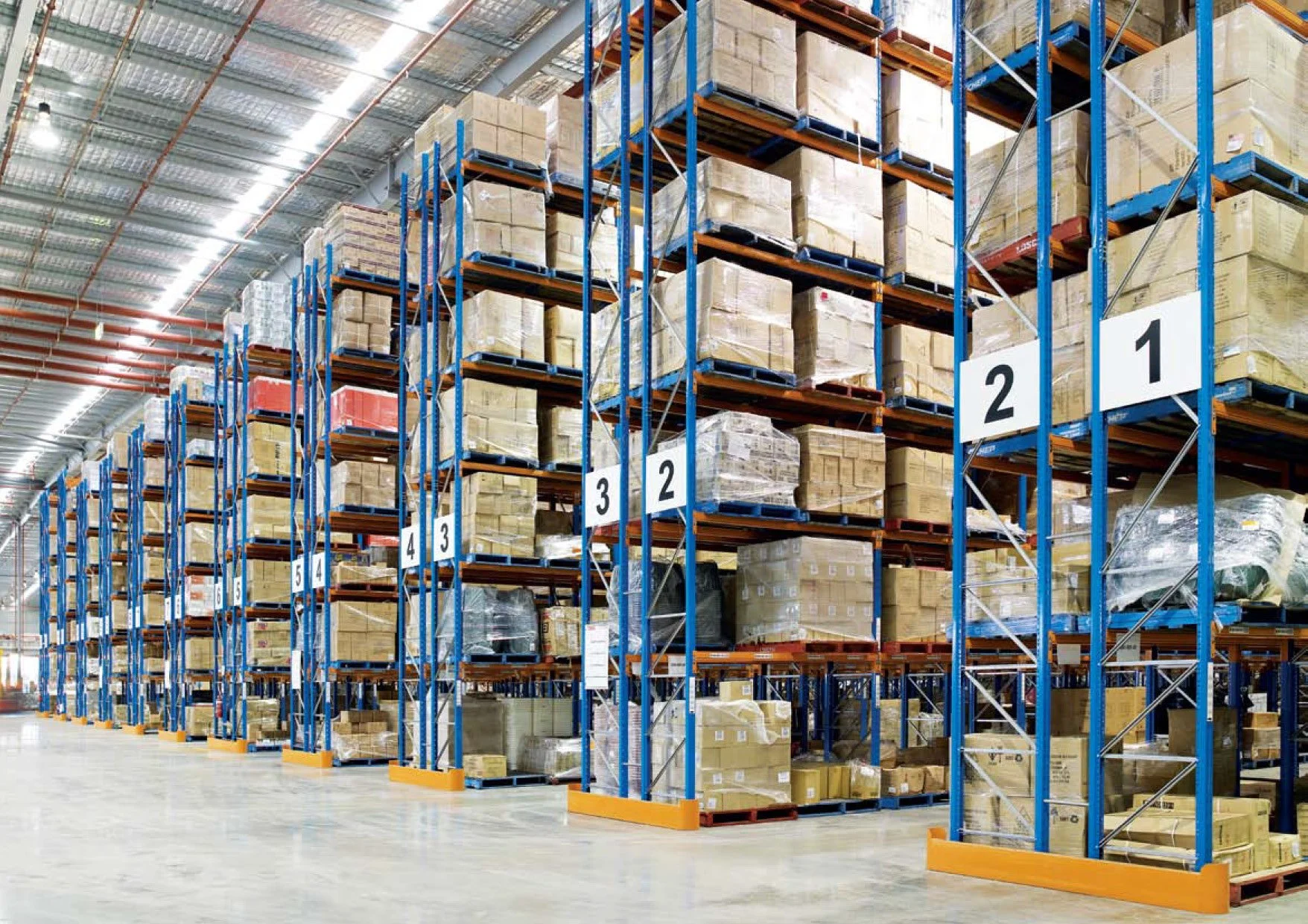

Selective Racking
Your need:
You have lots of products going to lots of places. Orders are complex, with a mix of SKUs. Ready access is a must, low cost a plus.
Our solution:
Selective pallet racking is very cost-efficient, offering you high capacity with easy access. Simple to install and customise, being infinitely adjustable. Serviced by conventional forklifts.
Vital statistics:
Average locations used - 95%
Immediate accessibility - 100%
Stock rotation - Good
Average floor area by pallet position (sqm) - 0.85

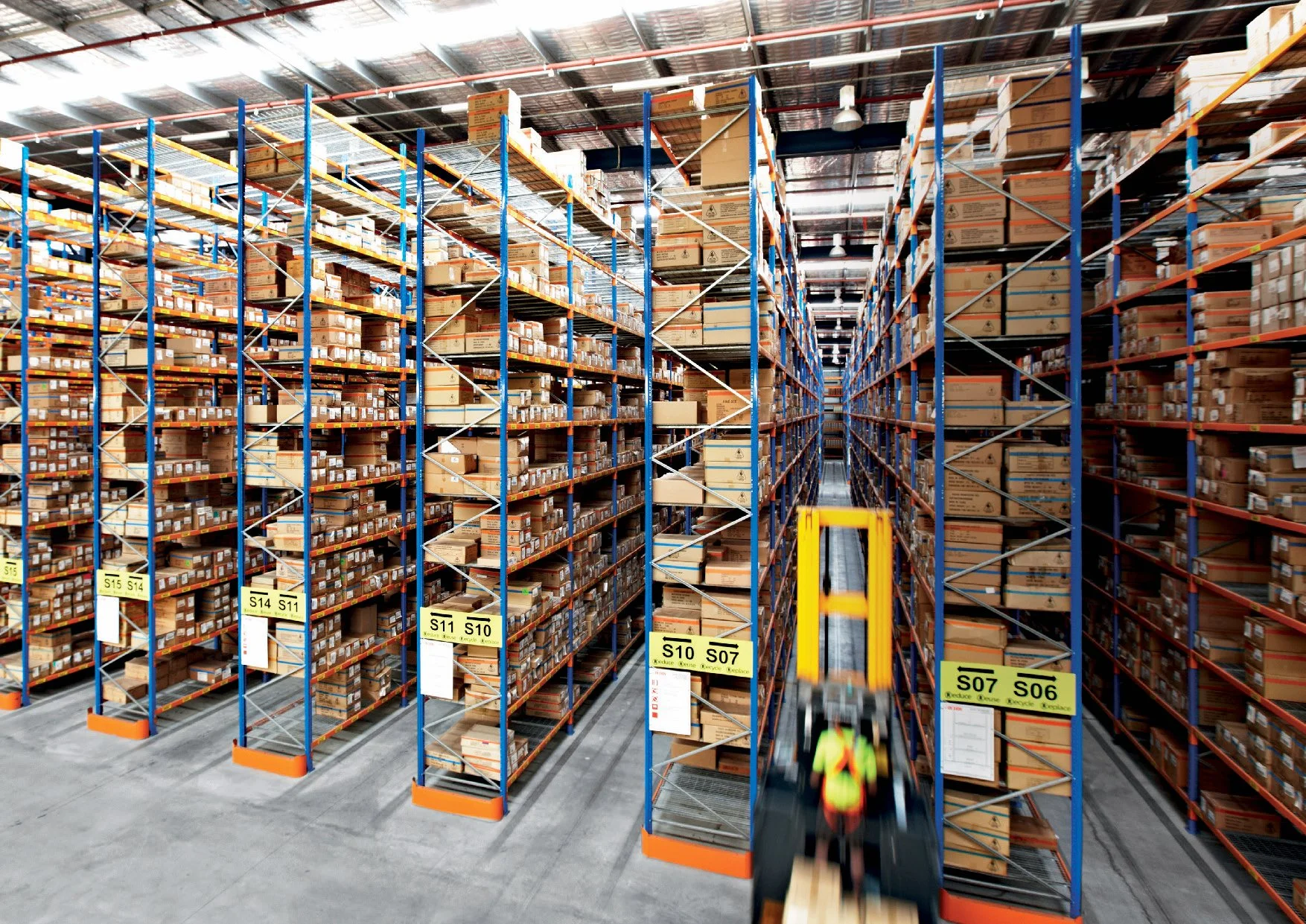

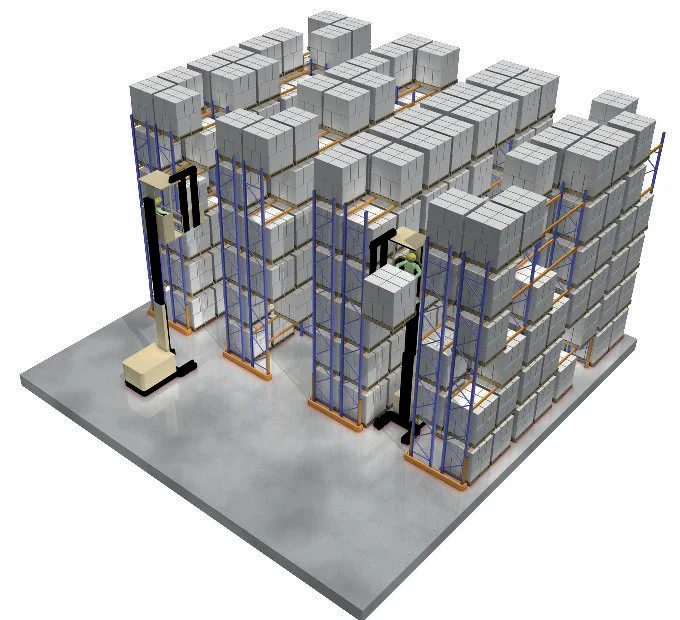

Narrow Aisle Racking
Your need:
Space is at a premium and you have many SKUs. Your orders are complex and varied, and you need high-density storage. Though turn-around times aren’t critical, you need quick access to everything.
Our solution:
Maximise your floor area and roof height. Gives you direct access to every pallet. Serviced by special forklift trucks.
Vital statistics:
Average locations used - 95%
Immediate accessibility - 100%
Stock rotation - Good
Average floor area by pallet position (sqm) - 0.45

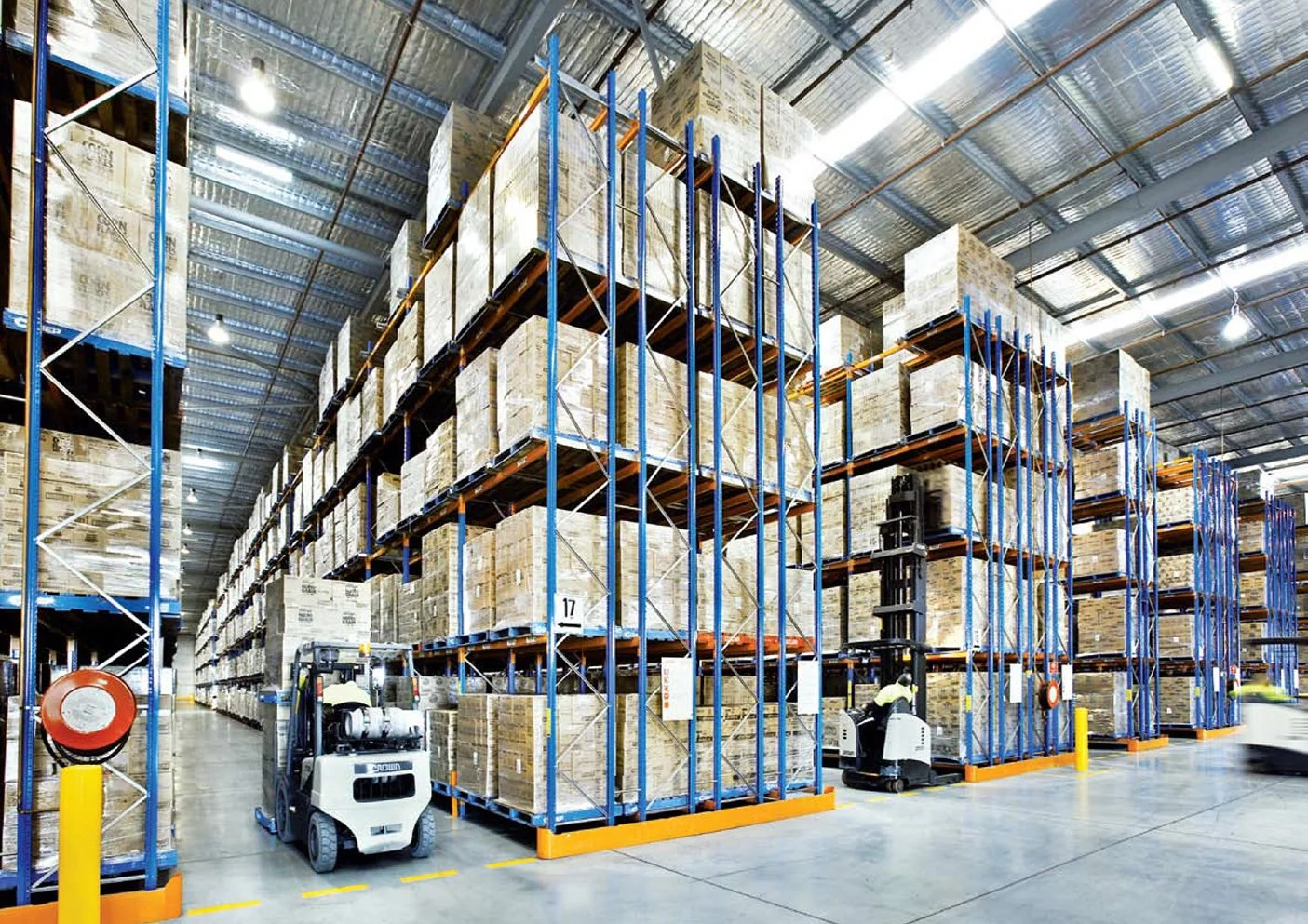

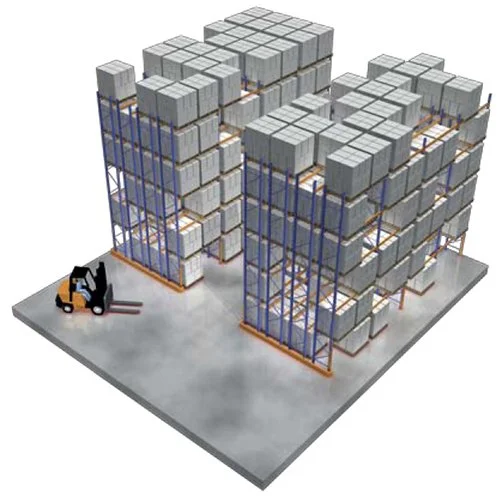

Double Deep Racking
Your need:
Not a lot of products, but distributed in high volumes. Maybe you make them yourself. The same SKUs are in groups of pallets before dispatch.
Our solution:
Stores up to four pallets deep, for quick dispatch of big, single-SKU orders. Double-entry aisle allows unbeatable access by dual pantograph or sliding fork attachments. Upper levels can be fitted with helpful guide rails.
Vital statistics:
Average locations used - 88%
Immediate accessibility - 50%
Stock rotation - Average
Average floor area by pallet position (sqm) - 0.60

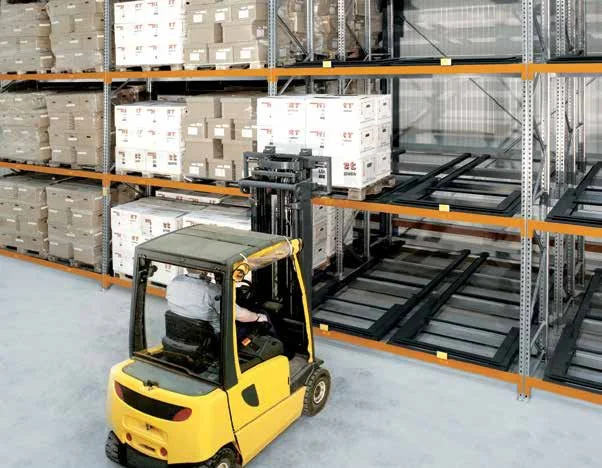

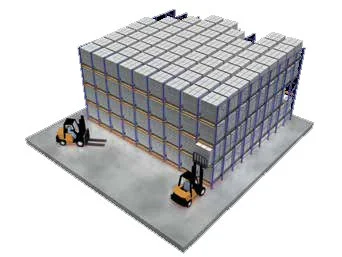

Push Back Racking
Your need:
You require maximum storage density, you are not concerned about stock rotation and you have large batches of the same SKUs. You are looking for operating efficiencies and are safety-focused. Pallet access is arranged on a Last In, First Out basis.
Our solution:
Push back racking combines high-density storage with high-speed access by conventional forklift trucks. Pallets may be safely stored 2 to 6 deep. Pallets are gravity fed ensuring the pick face is constantly filled.
Vital statistics:
Average locations used - 80%
Immediate accessibility - Up to 100%
Stock rotation - Average
Average floor area by pallet position (sqm) - 0.55

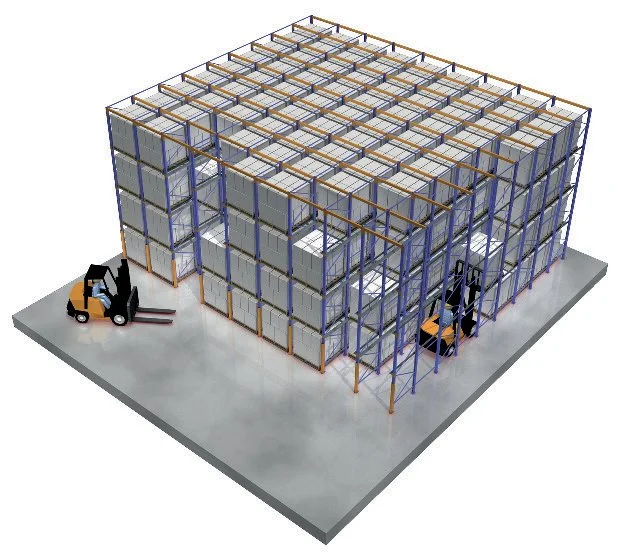

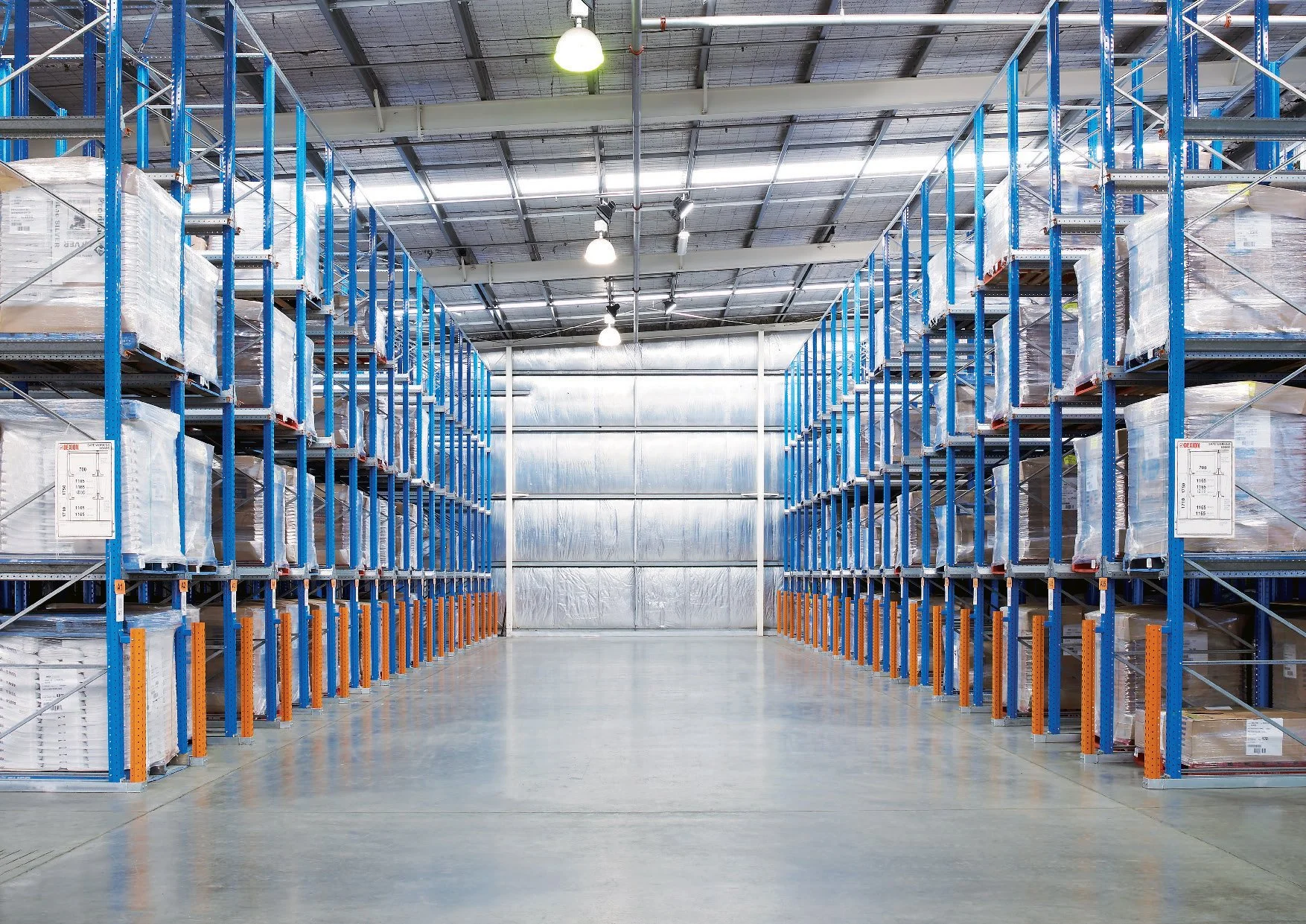

Drive-in Racking
Your need:
Only a few SKUs, but many pallets. Space efficiency and low cost are critical, and you may need cold storage. First In, First Out isn’t important
Our solution:
This system’s designed for high-volume, easy-access storage. Unique self-centring rails position pallets quickly, easily and safely. Works with conventional forklifts.
Vital statistics:
Average locations used - 75%
Immediate accessibility - Up to 100%
Stock rotation - Average
Average floor area by pallet position (sqm) - 0.55
